Thermal Management & Optimization
Benefit of Early Design
-
By the simulation results of temperature and flow field.
通過模擬分析得到溫度及流動結果。 -
Verify thousands of thermal strategies by CFD software.
透過CFD驗證多種散熱策略。 -
Visualize flow field to identified issue which can never be achieved by prototype.
可視覺化辨識圓形無法實現的問題。 -
Reduce product cost and enhance the system reliability.
降低成本並提高系統可靠度。
System Thermal Analysis
-
Model construction
-

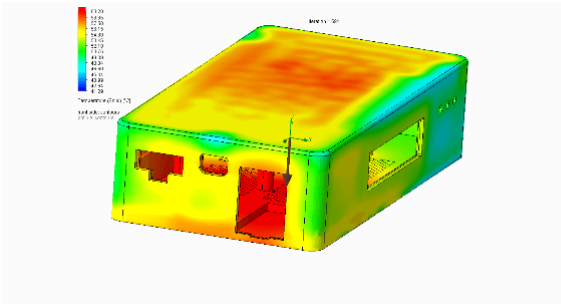

Case surface temp plots
-
PCBA temperature plots
-
Capability assessment
-
Thermal Module Design
-
Consultant suggestions & modifications
-
DFM (design for manufacturer)
-

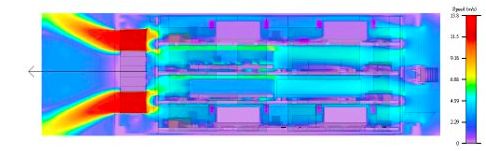

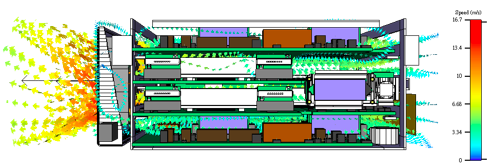

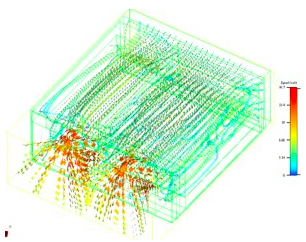

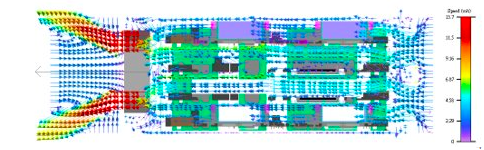

System 3D flow field
-
2D Engineering Draw & 3D Engineering Molding, Tolerance analysis.

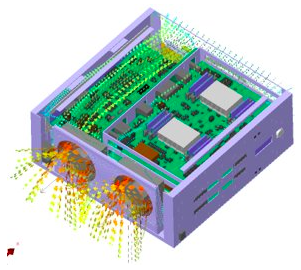

System Thermal Solution Example

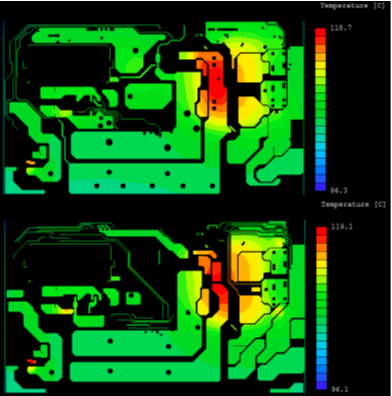

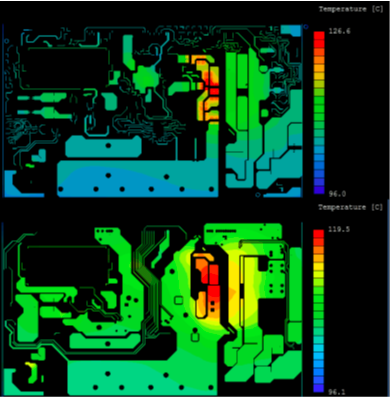

PCB Thermal Analysis Example

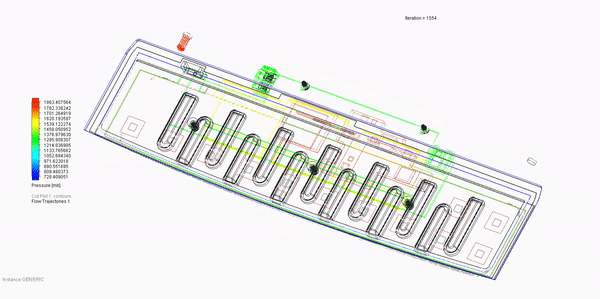

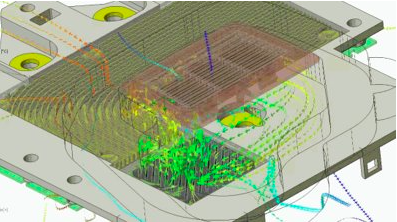

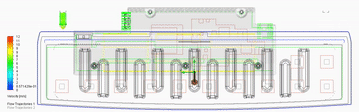

Module Thermal Solution Example
